Whitted-Style Ray-Tracing

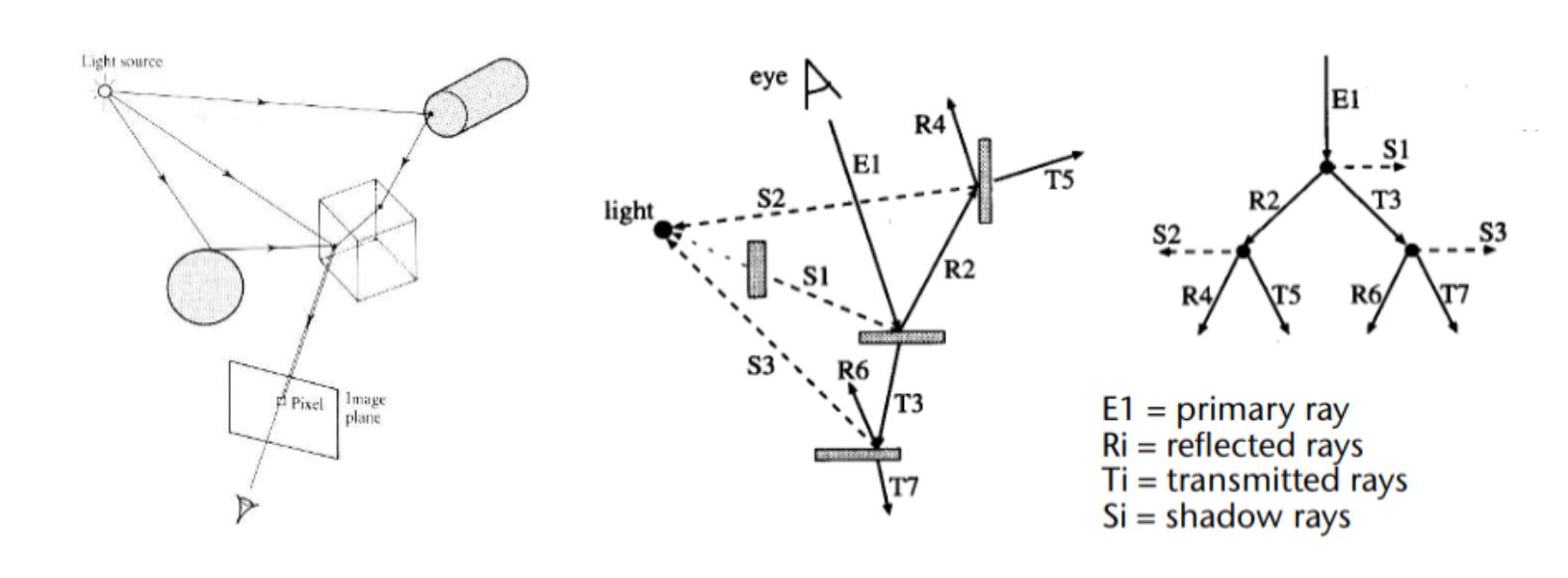

Ray Tree

• Basic idea of ray-tracing: construct ray paths from the light sources to the eye, but follow those paths “backwards”

Link to original

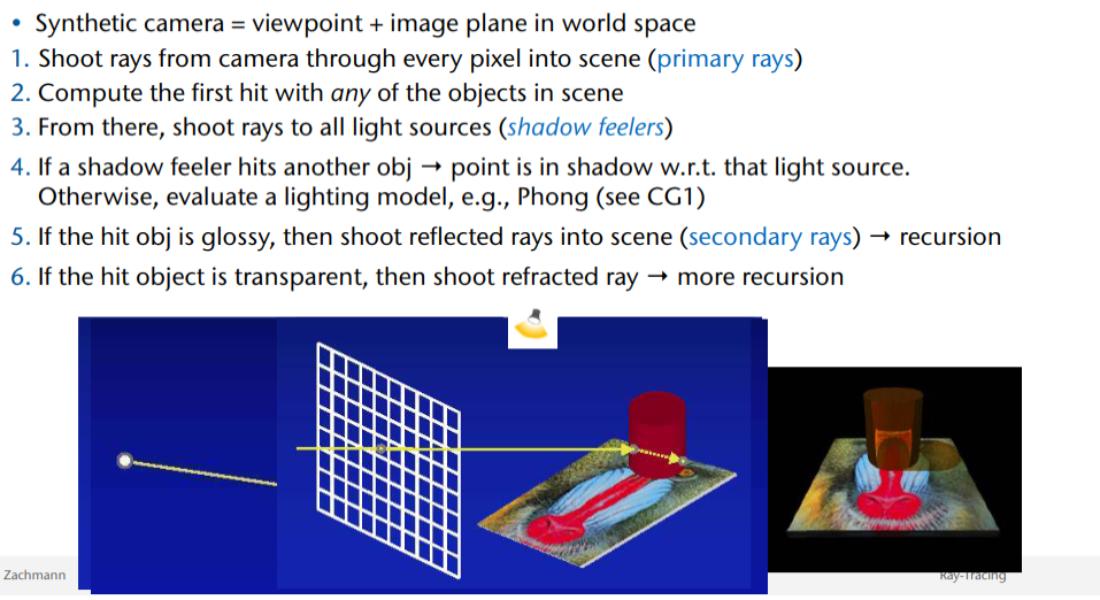

Setup

1. Primary Rays
   => Camera Model

2. Secondary rays and shadow feelers
   => Secondary Rays

3. Combining all incoming light into “one” outgoing light
   => Lighting models

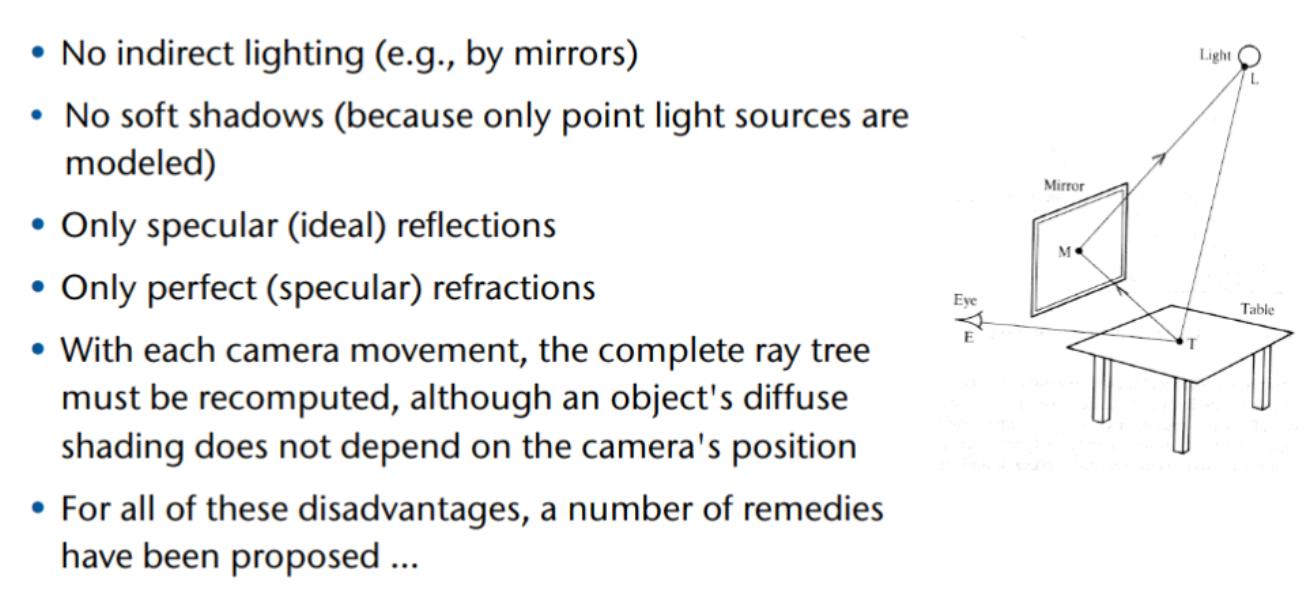

Limitations
